Static dimensioning/cubing system for parcel shipping and warehouse management.
How does it work?
Simply place the product or shipment on the scale.
Press a button or read a barcode and ParcelCube will capture the dimensions and weight of the box.
Data is captured in less than one second – accurately and efficiently!

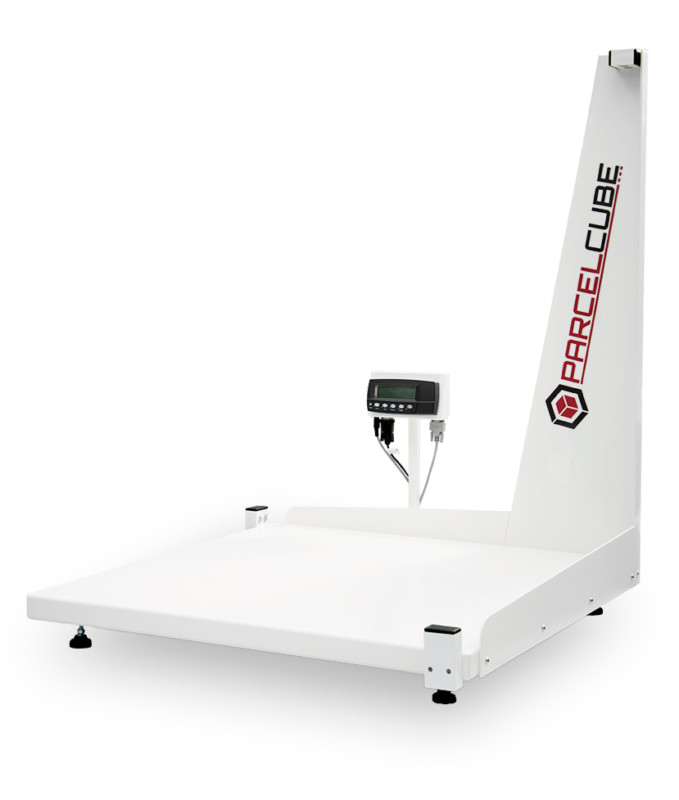

The SN-1 model includes a measuring, weighing scale with accurate and reliable four load cell construction, weight display for actual weight, barcode scanner (optional) and a calibration cube
(20 x 20 x 20 cm).
ParcelCube – the solution for both inbound and outbound logistics
68 x 68 x 113 cm / 27 x 27 x 45 in Weight
15.6 kg / 34.4 lbs
4 x 4 x 2 cm / 1.5 x 1.5 x 0.8 in Maximum 82 x 82 x 94 cm
32 x 32 x 37 in Dimensional increment 0,1 cm / 0,3 cm / 1,0 cm
0,04 in / 0,12 in / 0,4 in
Minimum 0.05 kg / 0.11 lbs Maximum
55 kg / 120 lbs Increment 0.005 kg / 0.011 lbs
100–240 VAC 50/60 Hz Measuring sensor
Ultrasonic Weigh sensor
4 x load cell Weigh indicator
RS232 Data output
CSV / XML / HTTP User interface
Parcelcube client PC connection
USB Operating temperature +15 … +30 °C
Panel PC’s barcode reader
Camera + camera interface
