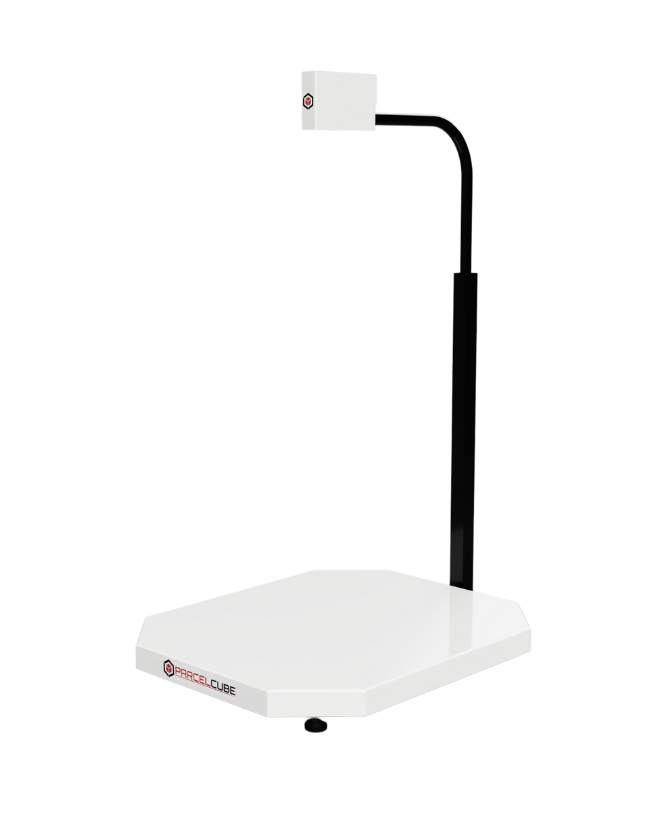

Parcelcube™ Vision
Automatic dimensioning system for irregular shaped items, small items and parcels. Great for parcel shipping and warehouse management.
How does it work?
- Simply place the product or shipment on the scale.
- Press a button or read a barcode and ParcelCube will capture the dimensions and weight of the box.
- Data is captured in less than one second – accurately and efficiently!
The Parcelcube Vision model includes a measuring, weighing scale with accurate and reliable four load cell construction, weight display for actual weight, barcode scanner (optional) and a calibration cube
(20 x 20 x 20 cm).
ParcelCube – the solution for both inbound and outbound logistics
| Physical |
| Dimensions, WxDxH 52 x 70 x 90-140 cm / 20 x 28 x 30-55 in Weight 11 kg / 24 lbs |
| Measuring capacity |
| Minimum 3 x 3 x 0.2 cm / 1.5 x 1.5 x 0.1 inch Maximum 62 x 62 x 62 cm /24 x 24 x 24 inch Dimensional increment 1 cm / 0.1 cm / 0.4 in / 0.04 in |
| Weighing capacity |
| Minimum 0.05 kg / 0.11 lbs Maximum 40 kg / 88 lbs Increment 0.005 kg / 0.011 lbs |
| Other |
| Power Supply 100–240 VAC Measured with 4 Cameras Weigh sensor 4 x load cell Weigh indicator RS232 Data output CSV / XML / HTTP / API User interface Windows PC connection RS232 / USB Operating temperature +10 … +40 °C |
| Accessories |
| Panel PC’s barcode reader Label printer |
| Custom software |
| Camera + camera interface |
